Mitsubishi Multi-Zone Systems (MXZ) in Alhambra
Short and true: Alhambra Mitsubishi HVAC designs, installs, and repairs Mitsubishi MXZ and MXZ-SM multi-zone systems across Alhambra and ZIPs 91801 and 91803, putting one outdoor unit on two to eight heads for duct-free homes in Midwick and Bean Tract. Call (213) 755-2539 or book online; in-warranty units go to authorized service first.
The summary
- Condensers: MXZ-2C/3C/4C legacy and MXZ-SM SMART MULTI (36/42/48 kBTU, Hyper-Heat MHZ variants)
- One outdoor unit drives 2 to 8 indoor heads, mixed types
- MXZ-SM is compatible with M-Series, P-Series, and CITY MULTI indoor units
- Mix wall MSZ, floor MFZ, ceiling MLZ, and ducted SEZ heads on one system
- Install lane roughly $9,000 - $20,000 for 3-4 zones (2026 SoCal; verify per quote)
- Service area: Alhambra 91801 and 91803, all seven neighborhoods
- Independent shop; in-warranty Mitsubishi units sent to authorized service
How does one outdoor unit run a whole house?

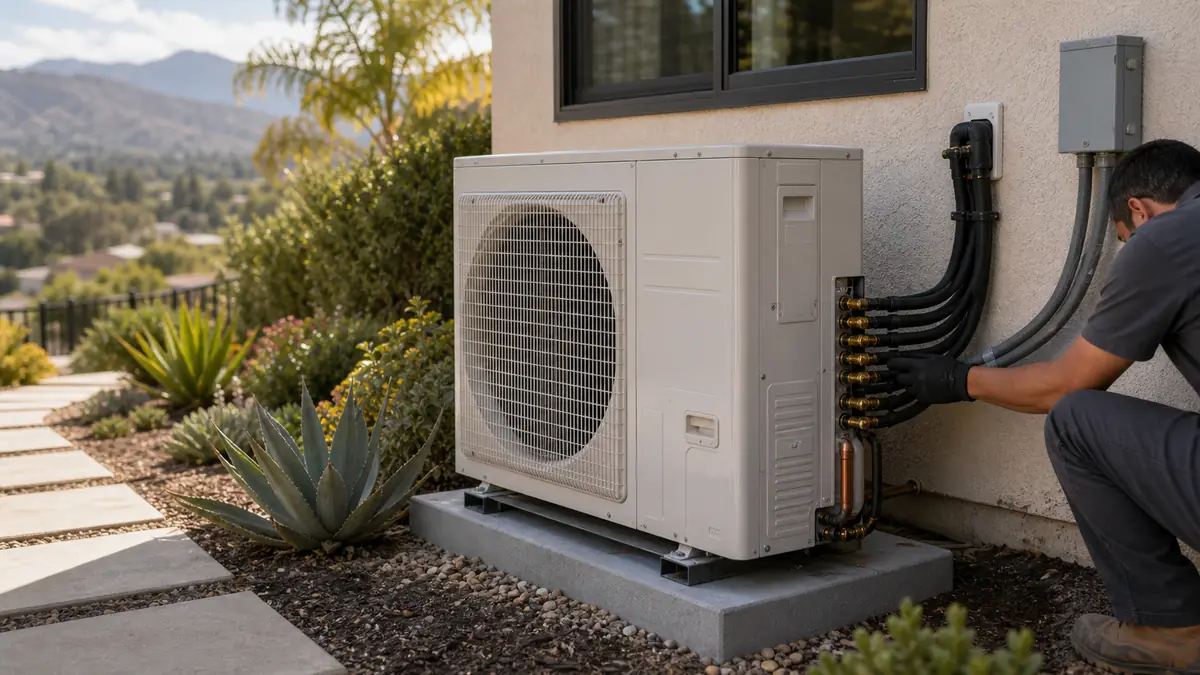

A multi-zone condenser - legacy MXZ-2C/3C/4C or the current MXZ-SM SMART MULTI - has the refrigerant capacity and control electronics to feed several indoor heads at once, each with its own LEV/EEV metering its share of refrigerant. You get independent temperature control in every room from one outdoor unit and one line-set bundle, which is the only practical way to cool an entire 1920s Alhambra house that has no ductwork and no central return.
Which heads can I mix on a Mitsubishi multi-zone?
| Head | Mount | Where it fits an Alhambra home |
|---|---|---|
| MSZ-FS / MSZ-WR | Wall | Living room, bedrooms |
| MFZ-KJ | Floor console | Under a window, old floor-furnace spot |
| MLZ-KP | 1-way ceiling cassette | Finished ceilings, fits between joists |
| SEZ-KD | Slim concealed duct | Short runs to two close rooms |
How do you size a multi-zone for a 1920s floor plan?
Never by stacking up nameplate tonnage. Every room in an old Alhambra home pulls its own way - a west-facing parlor with single-pane windows and bare plaster draws far more load than a shaded north bedroom. So we calculate the load room by room, settle on a head size for each zone, and then pick an MXZ-SM condenser whose combined capacity tracks the realistic simultaneous demand instead of every zone firing at once. Botch that balance and the system short-cycles and barely dehumidifies; nail it and the unit sips power right through the summer.
Which MXZ condenser fits an Alhambra house?
The outdoor unit is the heart of the system, and Mitsubishi runs two generations. Matching the condenser to the zone count and the heat-side need is the whole game:
- MXZ-2C20NAHZ / MXZ-3C30NAHZ legacy "C" line. Older two-to-four-zone condensers, roughly 20,000 to 36,000 BTU/h, still common on Alhambra installs from the last decade; the HZ suffix is Hyper-Heat.
- MXZ-SM36NAMHZ / SM42NAMHZ / SM48NAMHZ SMART MULTI. The current simplified platform, 36 to 48 kBTU, compatible with M-Series, P-Series, and CITY MULTI indoor units - so you can mix a deluxe MSZ-FS, a floor MFZ, and a ceiling MLZ on one outdoor unit. The MHZ variants add Hyper-Heat for an all-electric conversion.
- Standard MXZ-SM (non-MHZ). Cooling-led whole-home jobs that keep the existing furnace - the lower-cost outdoor unit where you do not need cold-climate heating.
What fails on a multi-zone, and how is it different?
Single-zone faults stay local: a P5 drain or P9 thermistor on one head affects only that room. Shared-condenser faults take everything down at once. Because the MXZ-SM carries premium inverter electronics, an out-of-warranty board sits high in the cost lanes, which weighs heavily in the repair-or-replace decision.
| Symptom | Code / scope | Cost lane |
|---|---|---|
| One zone leaks water, trips | P4/P5 - that head's drain or pump | ~$150 - $450 |
| One zone drifts or misaims air | P1/P2/P9 - that head's thermistor | ~$150 - $400 |
| All zones quit together | U-code - shared inverter or compressor | ~$400 - $3,500 |
| All zones weak, common circuit iced | U7/P8 - leak on the shared refrigerant loop | ~$225 - $1,500 |
| Intermittent, zone comm errors | E6/E7/EB - inter-unit S1/S2/S3 wiring | ~$150 - $400 |
For a no-cool diagnosis start at Mitsubishi repair; for control of each zone, see smart controls. If you also want to drop the gas furnace, look at Hyper-Heat heat pumps.
One multi-zone or several single-zone systems?
It is a real fork, and the answer turns on your floor plan. One MXZ-SM driving several heads means a single condenser, one line-set bundle exiting the house, and one outdoor footprint - cleaner on a narrow Alhambra lot and tidier on a historic facade. The trade-off: a shared-condenser fault takes every room down at once, and the heads share the outdoor unit's capacity, so a badly balanced design short-cycles. Several independent single-zone MSZ/MUZ pairs give each room its own redundant system - one failure does not cool the whole house off - but you pay for multiple condensers and multiple wall penetrations, and most tight lots have nowhere to put three outdoor units. For three or more zones in a duct-free home, one well-sized multi-zone usually wins on cost, footprint, and looks; for one or two rooms, single-zone is simpler.
Is a multi-zone right for your home?
It fits the classic Alhambra case: a partitioned 1920s plan with no ducts, where people use different rooms at different hours and you want independent control without three condensers cluttering the lot. It is more than you need if you only condition one or two rooms - a single head or two is cheaper and simpler. Lot access decides feasibility: the side yard or rear setback has to hold one larger condenser with service clearance, and line sets reach each head through plaster. A whole-home multi-zone is a 9,000-to-20,000-dollar project for three to four zones, so we model the room-by-room loads first and show you the design before you commit; the AC installation page walks the Manual J sizing and install day. If you are also weighing dropping the furnace, read the Hyper-Heat page, and for sizing and SEER2, the buying guide.
Common questions
How many rooms can one Mitsubishi outdoor unit handle?
Depending on the model, one MXZ or MXZ-SM condenser drives two to eight indoor heads. A typical Alhambra house lands at three to five zones - living room, primary bedroom, and the back bedrooms. We size the condenser to the combined room loads, not just the head count, so it does not run starved or oversized.
What is MXZ-SM SMART MULTI and why does it matter?
MXZ-SM is Mitsubishi's current simplified multi-zone platform. It is compatible with M-Series, P-Series, and CITY MULTI indoor units, so we can mix a deluxe MSZ-FS in the living room with a floor MFZ console in a back bedroom on the same outdoor unit. It replaces the older C-series approach and makes zone changes cleaner.
If one zone stops cooling, is the whole system down?
Not usually. A single head with a bad thermistor, drain fault, or LEV issue typically affects only that zone while the others keep running. A fault on the shared MXZ condenser - inverter board, compressor, refrigerant charge - can take all zones down at once, which is the first thing we check when everything quits together.
Is a multi-zone system worth the higher price in Alhambra?
For a duct-free older home where people use different rooms at different hours, yes. Across our 40-plus days a year at 90 F, you can cool the occupied zones and let the rest idle - something a lone oversized head simply cannot manage. The install lane is real money, roughly 9,000 to 20,000 dollars for three to four zones, so we model it against your floor plan before we recommend it.
How many condensers does a typical Alhambra house need?
Usually one. A single MXZ-SM condenser drives three to five heads, which covers most 1920s Alhambra floor plans - living room, primary bedroom, and the back bedrooms - on one outdoor unit and one line-set bundle. We only split to a second condenser when the combined load or the line-set lengths exceed what one outdoor unit can serve well.
Can I add a zone later instead of all at once?
Sometimes, if the condenser was sized with headroom. An MXZ-SM has a fixed number of ports and a rated capacity, so adding a head later only works if we left room for it at design time. If you think a future office or garage conversion is coming, tell us up front and we will size the outdoor unit so the extra zone is a simple add rather than a full condenser swap.
